Consoles

You can create consoles and move them between the types Operator Consoles and Remote Consoles by using drag and drop.

When the Operator Console tries to connect to the G-SIM server for the first time, a record with the client’s computer name is automatically created and added to Operator Consoles.

Operator Console Settings

In the Operator Consoles, you are able to interact with the interconnected system of cameras, NVRs, storage, rules and more.

It is possible to work with various Operator Consoles. Their windows can be handled flexibly which means that they can be minimized, maximized or resized. They can be moved and overlap as well. Additionally, they can be activated via the task bar. The current state of the Operator Console windows is saved and restored with the next restart.

To allow the flexible handling of Operator Console windows, you must activate the privilege Allow flexible usage of OpCon windows. You can activate the privilege for User Groups and individual Users under the General / Control drop-down menu.

The Consoles settings are grouped in the following tabs:

Settings

Under the Settings tab you can configure the following settings:

Setting

Description

Name

Enter a unique name for the console in the primary and secondary languages.

Select Computer

Select the computer where the Operator Console is installed. The selection list is populated from the System Component Group Computers.

Console Global Number

Enter a Console Global Number.
This number is used in Remote Console actions to identify the Operator Console.

Control this Console remotely

Activate this slider to allow remote users with the correct rights to control this Operator Console remotely while another user is logged in.

This setting is not available for Remote Consoles.

Enable non-blocking sync

Activate this slider to enable non-blocking sync in the video viewers of this Operator Console.

This setting is not available for Remote Consoles.

Enable Smooth Playback

Activate this slider to enable smooth playback in the video viewers of this Operator Console.

This setting is not available for Remote Consoles.

Monitor Settings

Under the Monitor Settings tab you can configure up to four monitors that can be used in the specific Operator Console.

Each monitor has the same set of settings:

Settings

Description

Use this monitor

Activate this slider to use this monitor in the specific Operator Console.

Global Monitor Number

Each monitor of each Operator Console has a unique number which is displayed in the Global Monitor Number box. If it is activated in the Operator Console, the global monitor number is displayed on the monitor (for detailed information see Single Screen Templates).

With the optional action parameter GlobalMonitorNr you can send actions to a specific monitor. Without this parameter the actions are sent to the primary monitor.

The parameter is available for the following actions:

  • Viewer change scene extended:

    Enter the viewer global number in the viewer and the global monitor number in the GlobalMonitorNr parameter input field. The action changes the template/layout on the monitor with the global monitor number to the template/layout of the viewer with the viewer global number.

  • VC change scene by name extended:

    Enter the template/layout name in the scene and the global monitor number in the GlobalMonitorNr parameter input field. The action changes the template/layout on the monitor with the global monitor number to the template/layout with the template/layout name.

  • Viewer clear scene extended:

    Enter the global monitor number in the GlobalMonitorNr parameter input field. The action clears the template/layout on the monitor with the global monitor number.

  • VC clear scene by name extended:

    Enter the template/layout name in the scene and the global monitor number in the GlobalMonitorNr parameter input field. The action clears the template/layout on the monitor with the global monitor number if it displays the template/layout with the template/layout name.

Primary screen

Activate this slider to use this monitor as the primary monitor in the specific Operator Console. Only one monitor can be marked as Primary Screen.

Show auto view alarm

Activate this slider to use this monitor for display auto view alarms in the specific Operator Console. Only one monitor can be marked as Show auto view alarm.

If no monitor is marked with Show auto view alarm, the primary monitor is used for the auto view alarms.

Layout changes:

Block changes

Select to disable users to switch the layouts on this monitor in the specific Operator Console.

Allow all layouts

Select to allow the user to choose any configuration layout in the specific Operator Console.

Allow only selected

The administrator can select a list of the layouts that can be used on this monitor by the user of the specific Operator Console.

Flexible ReCon Mode

Under the Flexible ReCon Mode tab you can enable the flexible ReCon mode (see Login) for further Operator Consoles to control them, which means to open them as Remote Consoles, from your controlling console. The following settings are available:

Setting

Description

Enable Flexible ReCon Mode

Activate this slider to enable the flexible ReCon mode.

To be able to open an Operator Console as Remote Console, the following settings are necessary:

  • Activate the Enable Flexible ReCon Mode slider in the settings of the console that you want to open as Remote Console. The Start as a ReCon button appears on the login screen (see Login).

  • Activate the Control this Console remotely slider (see Settings) in the settings of the console that you want to open as Remote Console.

  • Add the console that you want to open as Remote Console to the OpCon's to be controlled list in the settings of your controlling console.

    For Remote Consoles only the Enable Flexible ReCon Mode slider must be activated.

Add Operator Console

Select an Operator Console from the drop-down menu.

#AddConsole

Click on this button to add the selected Operator Console to the OpCon's to be controlled list.

OpCon's to be controlled

The OpCon's to be controlled list contains consoles which can be controlled from the controlling console.

Remove Console

Use this button to remove consoles from the OpCon's to be controlled list.

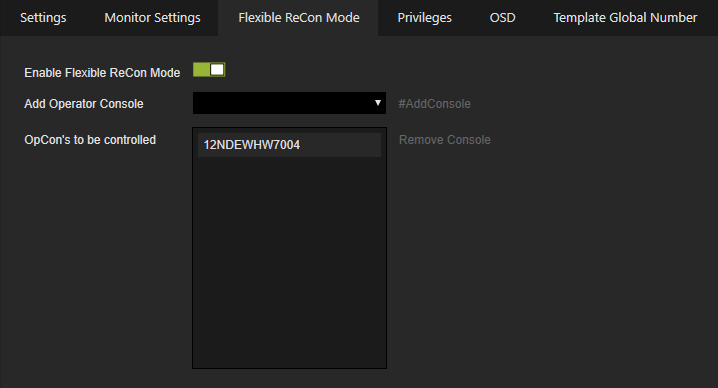

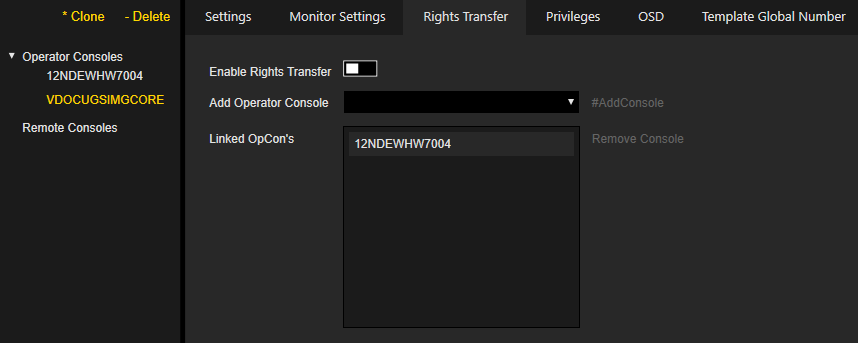

Example In this example the user of the VDOCUGSIMGCORE console can control the 12NDEWHW7004 console. It is necessary that in the console 12NDEWHW7004 the Control this Console remotely and the Enable Flexible ReCon Mode sliders are activated to start it in the flexible ReCon mode.

Privileges

Under the Privileges tab you can configure the privileges of the specific Operator Console. If no privilege is selected, the specific Operator Console has all rights. The console privileges can be overridden by the Users / User Groups privileges. The privileges are organized in groups. You can use the Select all and Clear all buttons to set or revoke all privileges in the group with one click. You can hold the mouse cursor under the privilege to display a detailed description.

Overriding of default privileges:

There are separate sets of privileges for consoles and users.

For the Remote Console a virtual, but not visible user is created. This user has all privileges except Override Console Restrictions and Override Default Privileges.

When an Operator Console or Remote Console connects to G-SIM server, a combination of the console and user privileges is used to determine user's result rights. There are the following possibilities:

  • If Override Default Privileges is selected, the user's privileges will be used.

  • If Override Default Privileges is not selected and the console has no privileges set, the user’s privileges will be used.

  • If Override Default Privileges is not selected and the console has privileges set, only the privileges where both, the console and the user privileges are selected, will be used.

OSD

Under the OSD tab you can override the default OSD settings for the specific Operator Console. See OSD for a detailed description of the OSD settings.

Template Global Number

Under the Template Global Number tab you can override the viewer global numbers of the populated layouts for the specific console. Viewer global numbers are used to identify the viewer in the remote viewer actions.

You can select a specific populated layout on the right side and perform the following actions:

  • Select Take Console Global number as offset to add a non-zero Console Global number at the start of the Viewer Global number.

  • Use the right-click context menu to configure the Viewer Global number for the specific Operator Console.

  • Click the Reset button to discard the overriding of the Viewer Global numbers.
